New energy vehicle charging piles are equipment devices that provide charging services for plug-in new energy vehicles. They are installed in public places such as public buildings, parking lots, shopping malls, commercial vehicle charging stations, and private places such as residential communities.
| Product Name | New Energy Vehicle Charging Pile |
|---|---|
| Rated Power | 7KW / 120KW |
| Startup Mode | QR Code / VIN / Card Swipe / Manual |
| Voltage Range | 200-1000V |
| Frequency | 50±1Hz |
| Peak Efficiency | ≥95% |

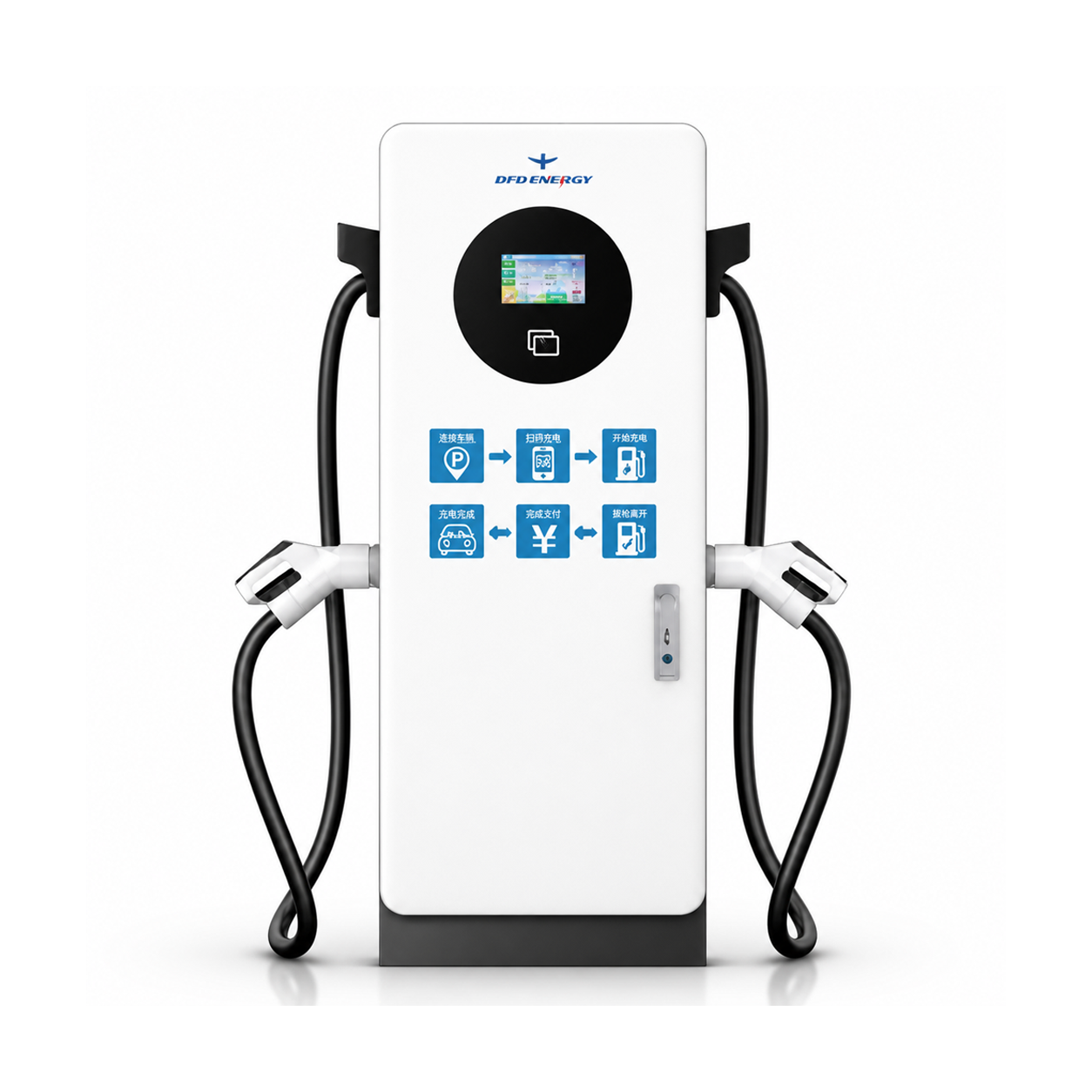

Dual-gun DC type, rated power 120KW, designed with dual charging guns, which can meet the fast charging needs of two new energy vehicles at the same time.
Adopts advanced touch screen display, with intuitive and simple operation and friendly user experience.
Its IP54 waterproof and dustproof design ensures the stable operation of the charging pile in various harsh environments and prolongs its service life.
Stable charging ensures accurate output of current and voltage, effectively protects electric vehicle batteries and prolongs battery service life.
Meanwhile, it is easy to maintain and reduces the operation and maintenance costs of operators.
Adopts multiple safety protection measures to ensure that abnormal conditions can be detected and handled in a timely manner during charging, ensuring user safety.
Ultra-fast charging greatly shortens user waiting time and improves charging efficiency.

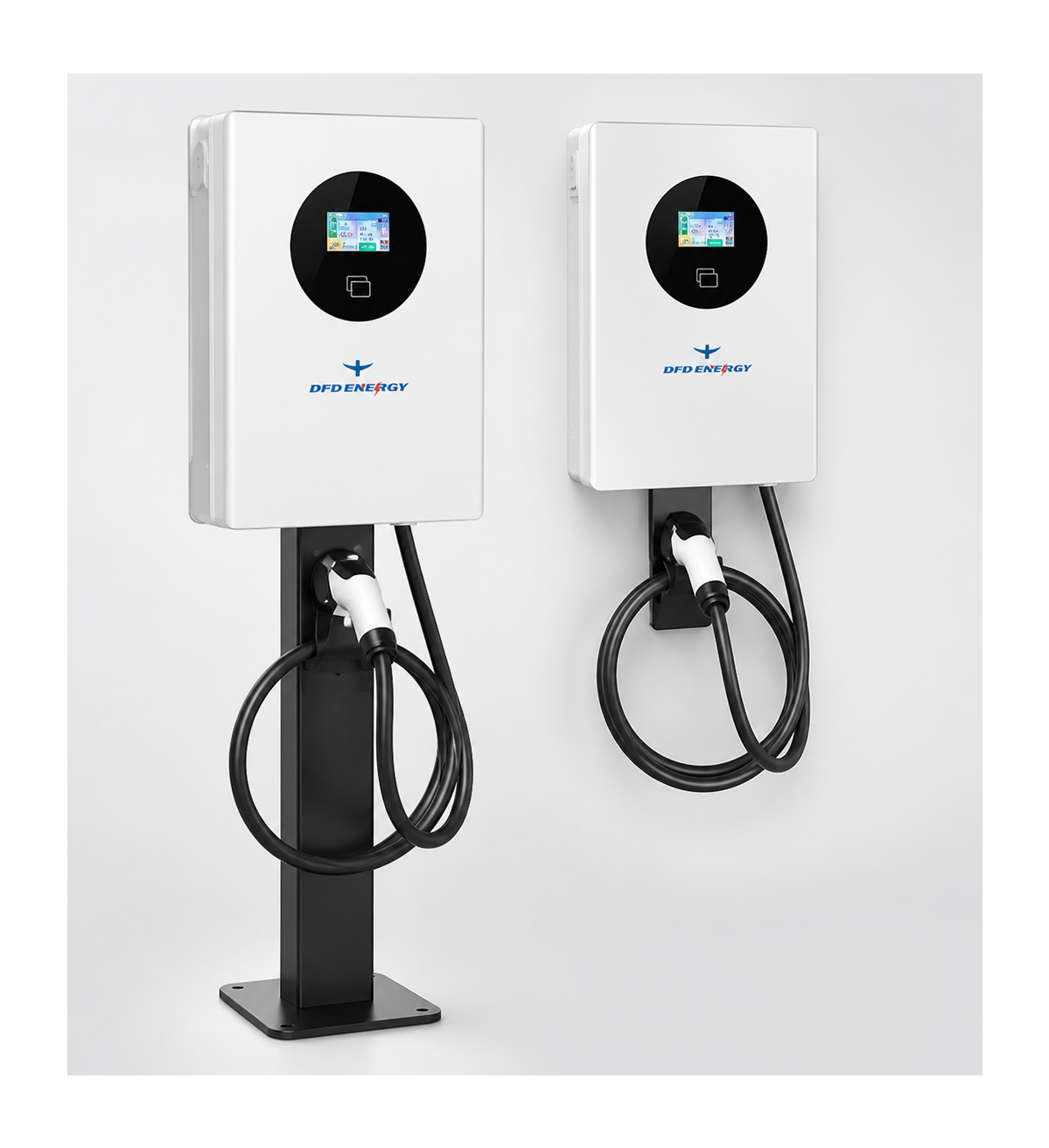

Single-gun AC type, rated power 7KW, specially designed to meet the charging needs of new energy vehicle owners.Suitable for 99% of national standard DC charging vehicles, with strong compatibility, no need to worry about charging mismatch.
Extremely low heat generation and low resistance, which can effectively reduce energy loss during charging and improve charging efficiency.
Simple and elegant design, convenient operation.
Whether installed in public places or private parking spaces, it can easily integrate into the environment and provide stable and reliable charging services for your vehicle.
| Model | DFD-JL | DFD-ZL |
| Rated Power | 7KW | 120KW |
| Number of Guns | 1 | 2 |
| Display Mode | Non-touch Screen | 7-inch Touch Screen |
| Startup Mode | QR Code / VIN / Card Swipe / Manual | |
| Input Voltage | 220V±20% | 380V±15% |
| Voltage Range | 200-1000V | |
| Max. Current per Gun | 32A | 250A |
| Max. Power per Gun | 7KW | 120KW |
| Frequency | 50±1Hz | |
| Peak Efficiency | ≥95% | |
| Operating Temperature | -20℃-50℃ | |
| Dimensions(MM) | 300×210×1500mm | 700×450×1730mm |
| Weight (KG) | 10KG | 245KG |
