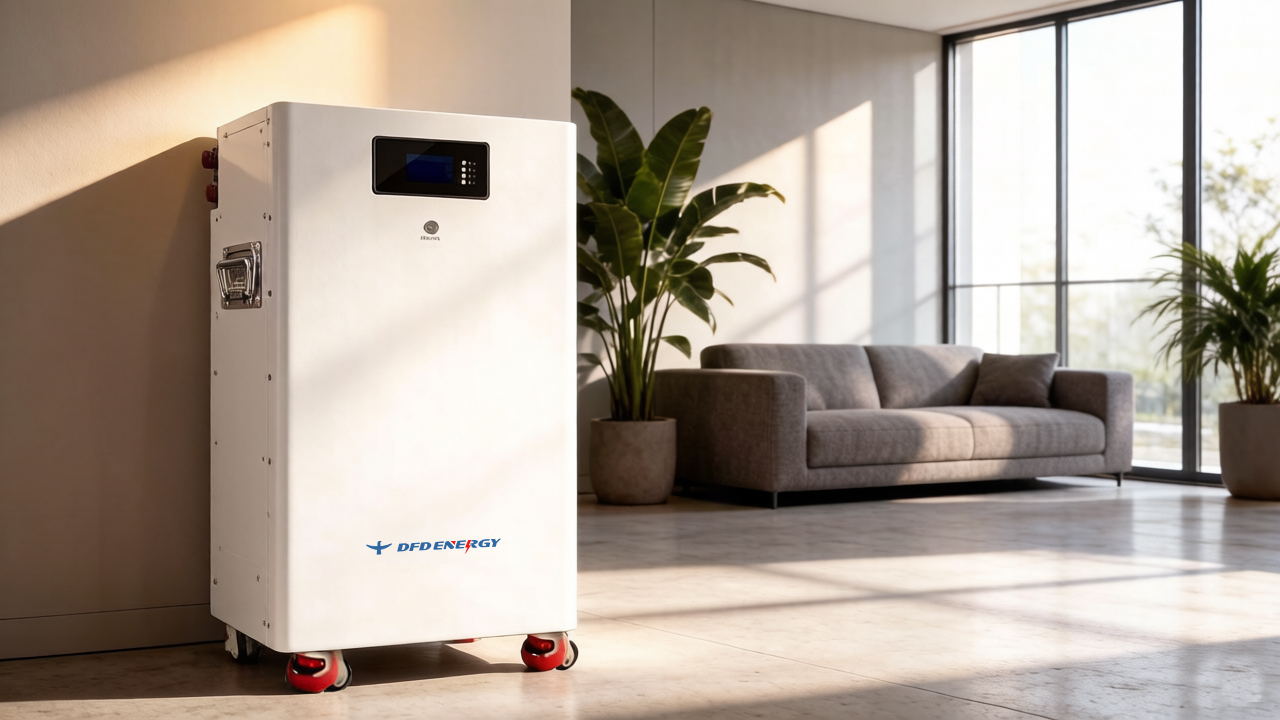

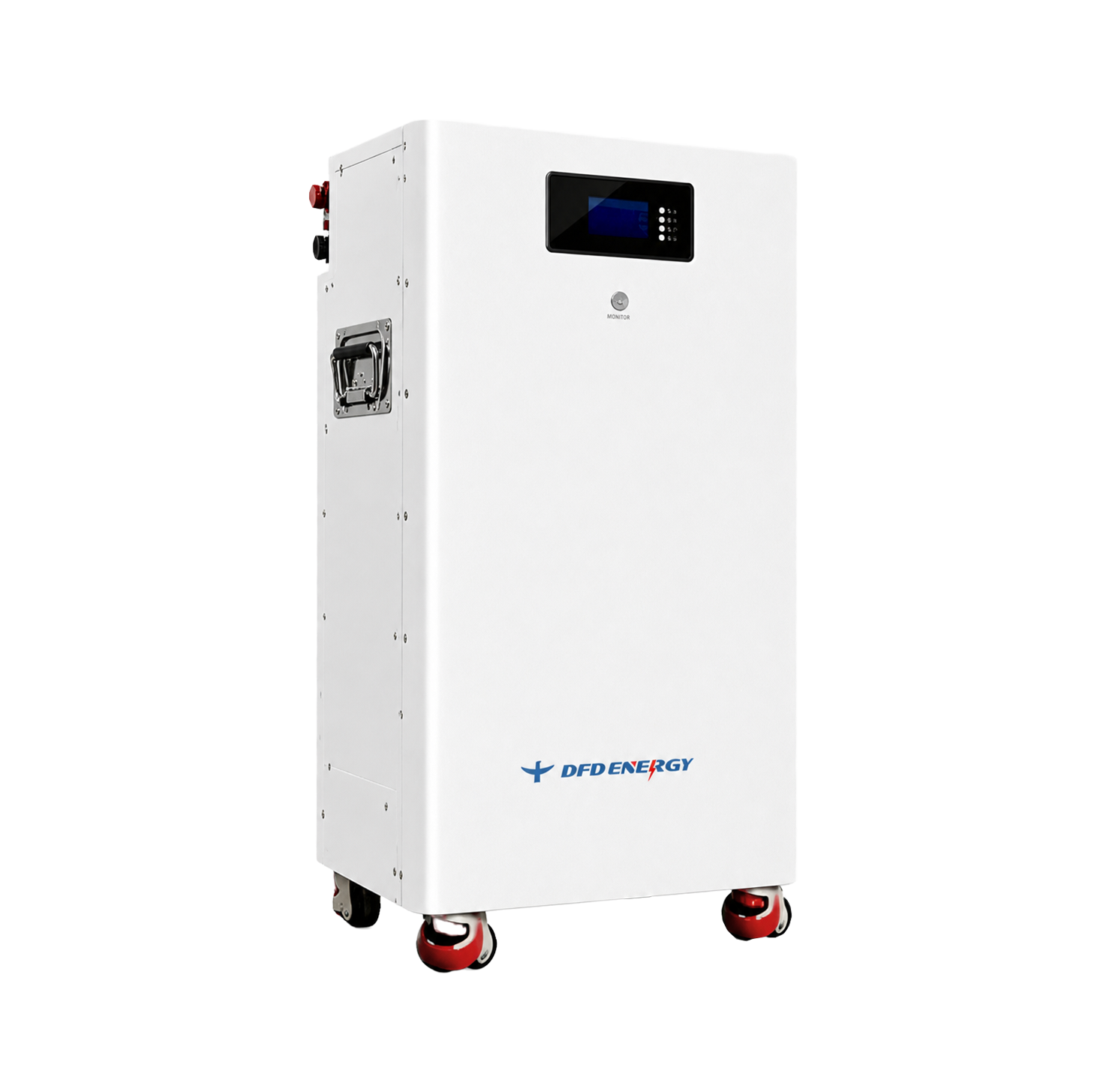

DFD Compact Home Energy Storage System

Perfectly tailored for home solar and off-grid scenarios, this 15kWh Home ESS features a space-saving, upright design with highly integrated modules. It is powered by an advanced BMS that provides real-time monitoring and comprehensive safety protection for stable, long-term operation.

其他信息

Product Name

DFD Compact Home Energy Storage System

Cell Type

LiFePO4 Battery

Nominal Voltage

51.2V

Nominal Capacity

14.336KWh

Cell Specifications

280AH

Cycle Life

≥ 6000 Cycles

Temperature

0℃-50℃

IP Rating

IP65

Product Introduction

Tailored for small and medium-sized households, it is paired with photovoltaic modules to achieve self-generation and self-consumption of electricity, reducing household electricity expenses.
15 kWh can stably support most household loads such as refrigerators, air conditioners, lighting, and kitchen appliances; it can also serve as an emergency backup power source in case of a power outage, ensuring uninterrupted household electricity usage.

b2c83101-6a7e-4133-9ec0-c2e3c6abd04f副本

Product Features

◪    Easy to move

◪    Built-in safety

           ◪    High energy density

 ◪    Long cycle life

    ◪    Easy to operate

                    ◪    Strong climate tolerance

 ◪    Customizable

                       ◪    Multiple circuit protections

Product Parameters

Rated voltage51.2V
Rated capacity14.336kwh
Colorwhitewhite
Battery TypeLiFePO₄
Cell specifications280AH
Battery configuration1P16S
Cycle life≥6000 cycles
Llifespan≥15 years (at 25℃)≥15 years (at 25℃)
Charging Temperature0℃-50℃
Discharge temperature-20-50℃
Maximum charging voltage58.4V
Maximum discharge voltage42.4V
Maximum charging current200A
Maximum discharge current200A
communication modeRS485/CAN
Protection ratingIP65
Battery ProtectionOvercharge/Overdischarge/Overcurrent/Short circuit/Temperature protection
Security CertificationUN38.3、MSDS、UL1642、UL1973、UL2580
Shell materialMetal

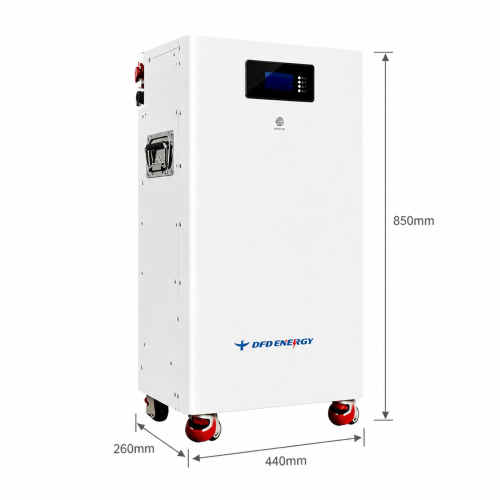

Size440mm*850mm*260mm
Weight100kg
Installation MethodFloor-standing
