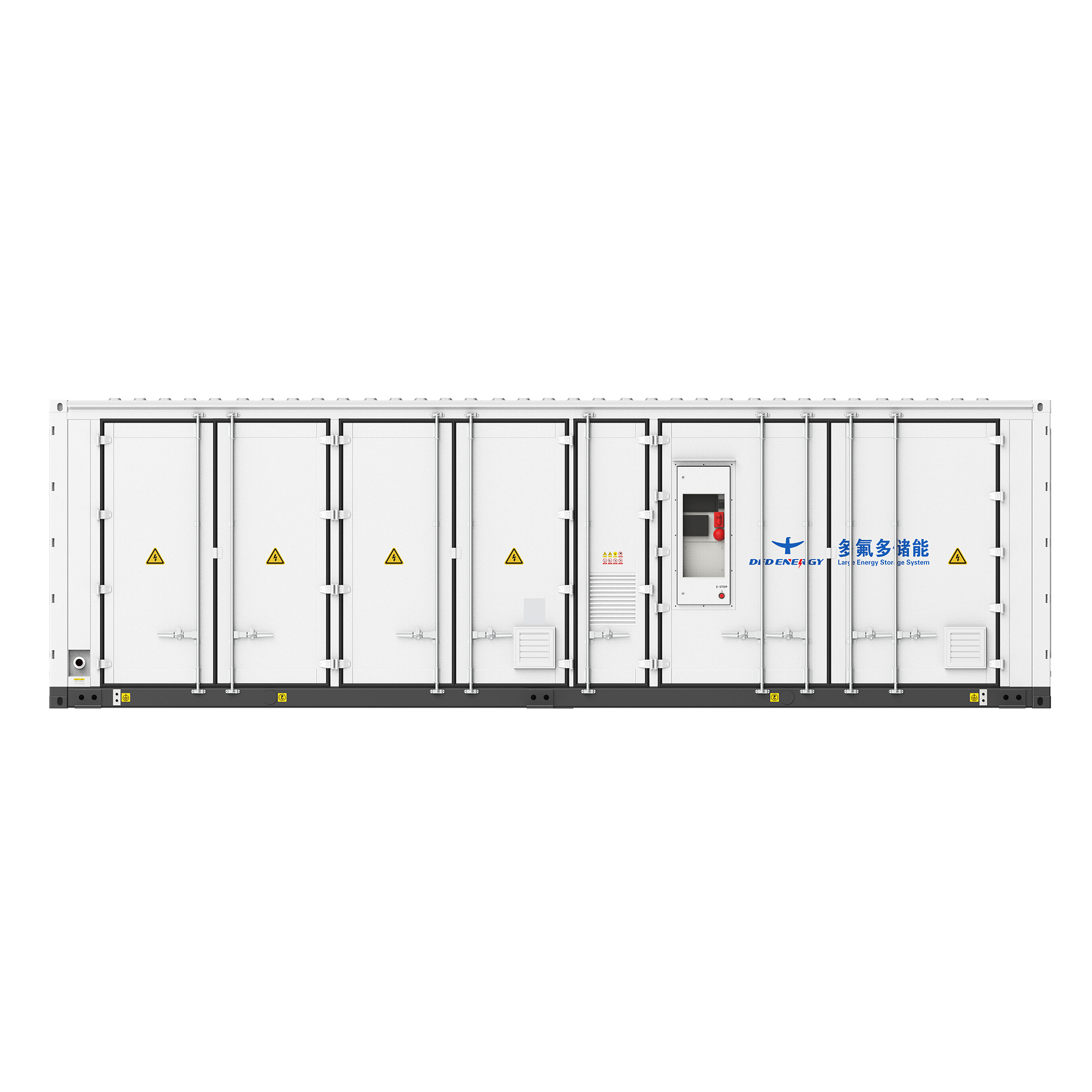

The container energy storage power station is designed with domestic first-tier brand battery cells, with a cycle life of up to 8,000-10,000 times. It integrates power system, BMS (Battery Management System), temperature control system, environmental control system, fire protection system, lighting system and grounding system. The main product specifications are 30HC and 33HC sizes, with a single-container capacity covering 5.2~6.7MWh, which can be flexibly configured according to customers’ application scenarios.
| Product Name | DFD-JZX Container Energy Storage System |
|---|---|
| Container Specification | 30HC / 33HC |
| Full Configuration Capacity | 5.2MWh / 6.7MWh |
| Applicable Voltage Range | 1000-1500V |
| Charge/Discharge Rate | 0.5CP |
| Cell Parameters | LFP-3.2V-280Ah-896Wh |
| Temperature Control Solution | Intelligent Inverter Air Cooling / Liquid Cooling |

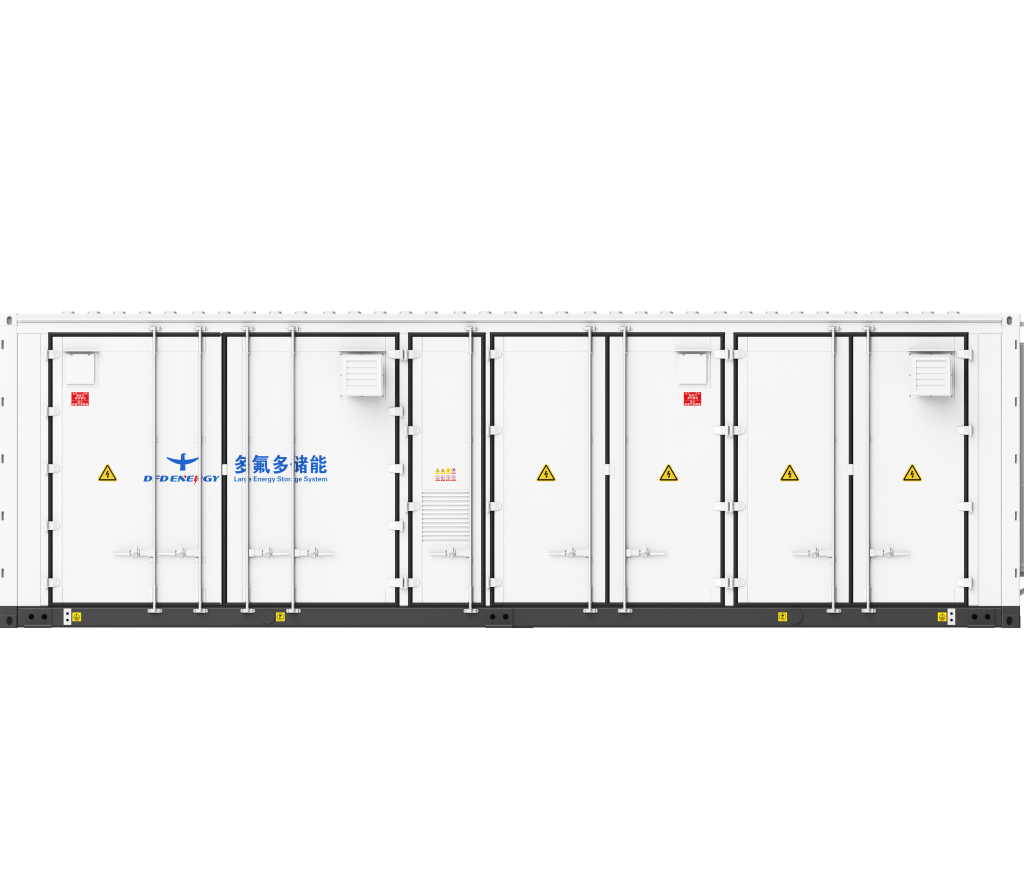

It highly integrates lithium batteries, battery management system (BMS), grounding system, power distribution system, temperature control system and fire protection system. It can provide functional services such as peak shaving and valley filling, grid frequency regulation, power capacity expansion and backup power supply, helping customers minimize electricity costs to the greatest extent.
| DFD-JZX | ||
| Container Specification | 30HC | 33HC |
| Full Configuration Capacity | 5.2MWh | 6.7MWh |
| Applicable Voltage Range | 1000-1500V | |
| Charge/Discharge Rate | 0.5CP | |
| Cell Parameters | LFP-3.2V-280Ah-896Wh | |
| Module Parameters | LFP-166.4V-280Ah-46.592KWh | |
| Cycle Life | 8000-10000次(90%DOD,70%EOL) | |
| Round-trip Efficiency | 94%(DC side) | |
| BMS Solution | Active Balancing + 3-tier Architecture | |
| Communication Interface | Ethernet/RS-485/CAN | |
| Communication Protocol | Modbus-TCP/IEC61850/104 | |
| Temperature Control Solution | Intelligent Inverter Air Cooling / Liquid Cooling / Immersion Cooling | |
| Fire Protection Solution | Gas/Smoke/Temperature Detection + Novec 1230 + Active Exhaust | |
| Insulation Resistance | >10MQ | |
| Auxiliary Power Supply | AC380V-50Hz | |
| Altitude | ≤5000m (Derating above 3000m) | |
| Operating Temperature | -40℃-55℃ | |
| Relative Humidity | 0~95%Rh(non-condensing) | |
| Overall Dimensions | 9125×2438 ×2896mm | 10300×2600 ×3100mm |
